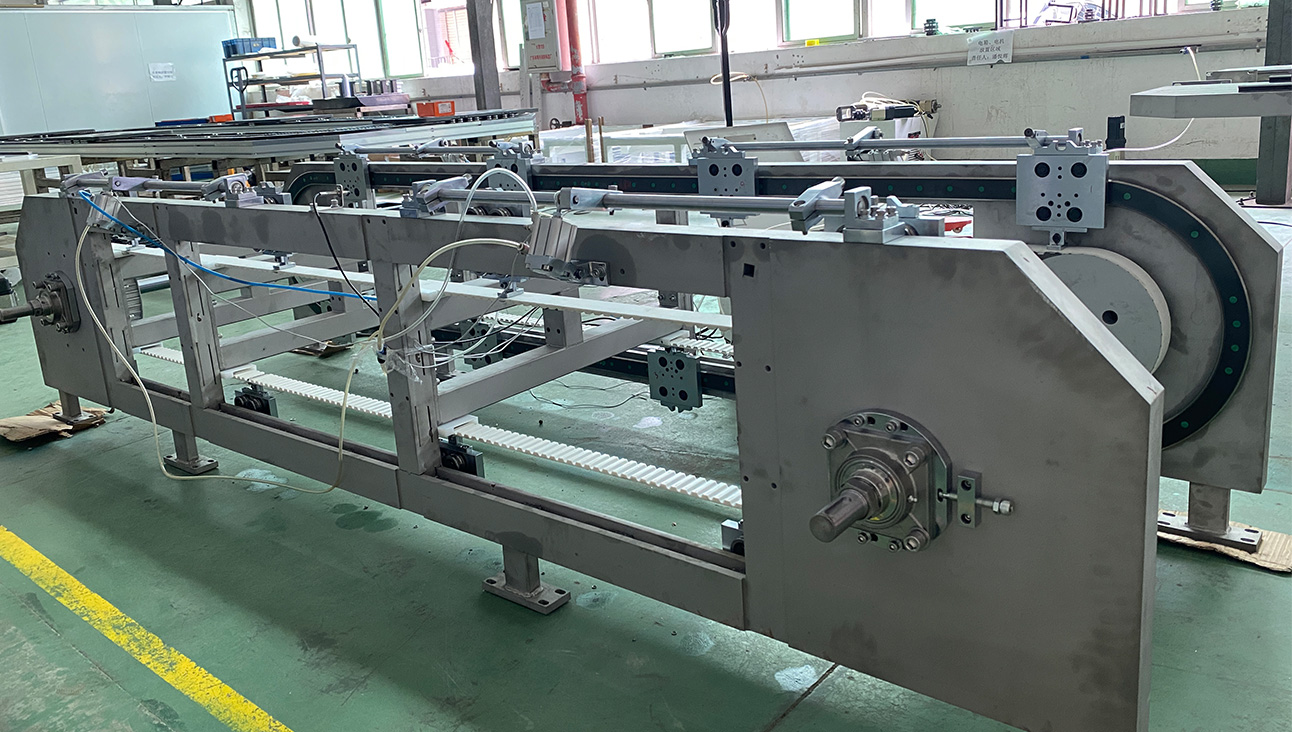

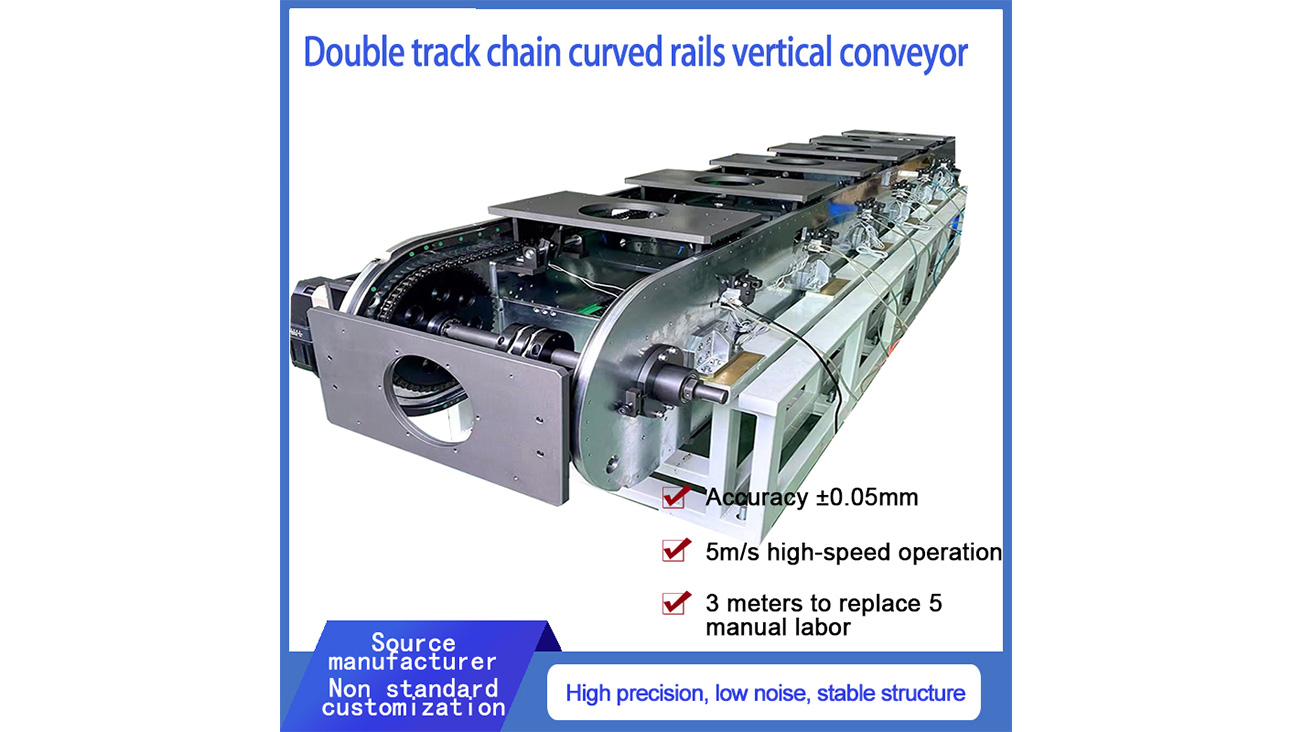

Vertical Curved Guidance System

Crafted with precision, the system features a unique vertical - curvature design. The guiding rails are constructed using high - strength stainless steel, formed through advanced cold - rolling and heat - treatment processes. This ensures the rails maintain their shape and stability even under the pressure of heavy - duty vertical conveying tasks.

Our system also incorporates a patented self - lubricating mechanism. Special lubrication grooves are precisely carved into the inner surface of the rails, allowing for continuous lubrication during operation, reducing friction and extending the lifespan of the conveyor chain by 30%. Additionally, an intelligent alignment system is integrated, which uses high - precision sensors to constantly monitor and correct any deviations in the chain's vertical movement, guaranteeing a smooth and accurate conveying process.

In the overseas market, this vertical curved guidance system is highly popular in industries like warehousing and logistics. It enables efficient vertical transportation of goods between different floors, optimizing space utilization. In the construction materials manufacturing industry, it's used to vertically convey heavy - weight raw materials such as cement bags and tiles. Moreover, in the food processing sector, it ensures the gentle vertical movement of products like canned goods, preventing damage during the conveying process.

Opt for our Vertical curved guidance system for efficient, reliable, and innovative vertical conveying solutions.
