Curved guide system: an innovative solution for modular transmission in multiple industries

Efficient and flexible excellent performance

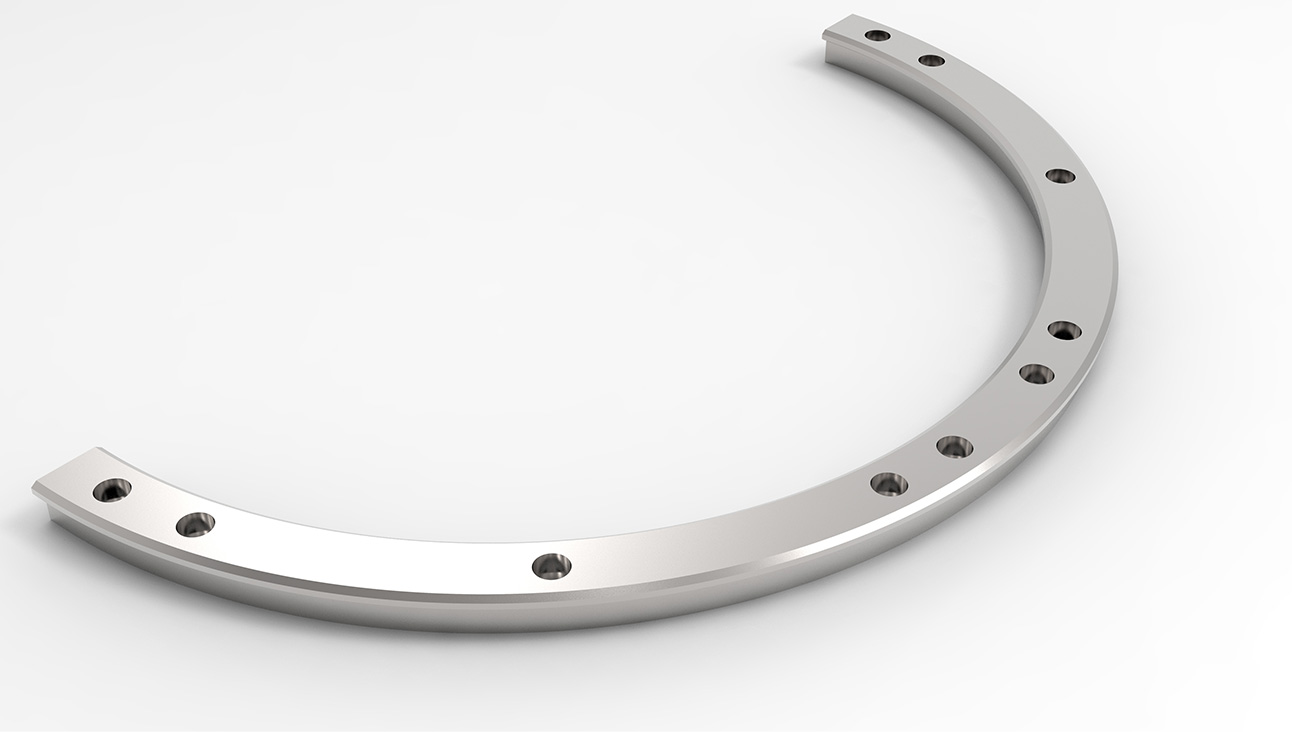

The curved guide system breaks the limitations of traditional linear transmission with its unique curved track design, and realizes flexible material transfer in complex spaces. In food processing plants, it can cleverly bypass other equipment and accurately transport baked goods, packaged beverages and other products to designated areas, avoiding efficiency losses caused by roundabout transportation. The system can run at a maximum speed of 600mm/S and supports stepless speed change. Whether it is the slow and precise delivery of tiny parts during 3C product assembly or the rapid transmission of large parts on the automotive parts painting line, it can easily cope with it. At the same time, its load capacity covers 5-80kg, which can meet the diverse material transmission needs of different industries.

Intelligent and reliable technical core

The system is equipped with advanced sensors and closed-loop control systems, which can monitor the material position and transmission status in real time. Once there is an offset or abnormality, it can be quickly adjusted within 0.1 seconds to ensure the accuracy of the transmission path. The track is made of special polymer composite materials with self-cleaning properties, which can effectively prevent residue and bacterial growth in food processing environments; in the automotive parts coating line, its excellent corrosion resistance can resist the erosion of paint and solvents. In addition, the modular drive components adopt a low-noise design, with a noise level of less than 50 decibels during operation, creating a quiet and comfortable working environment for the production workshop.

Highly adaptable product advantages

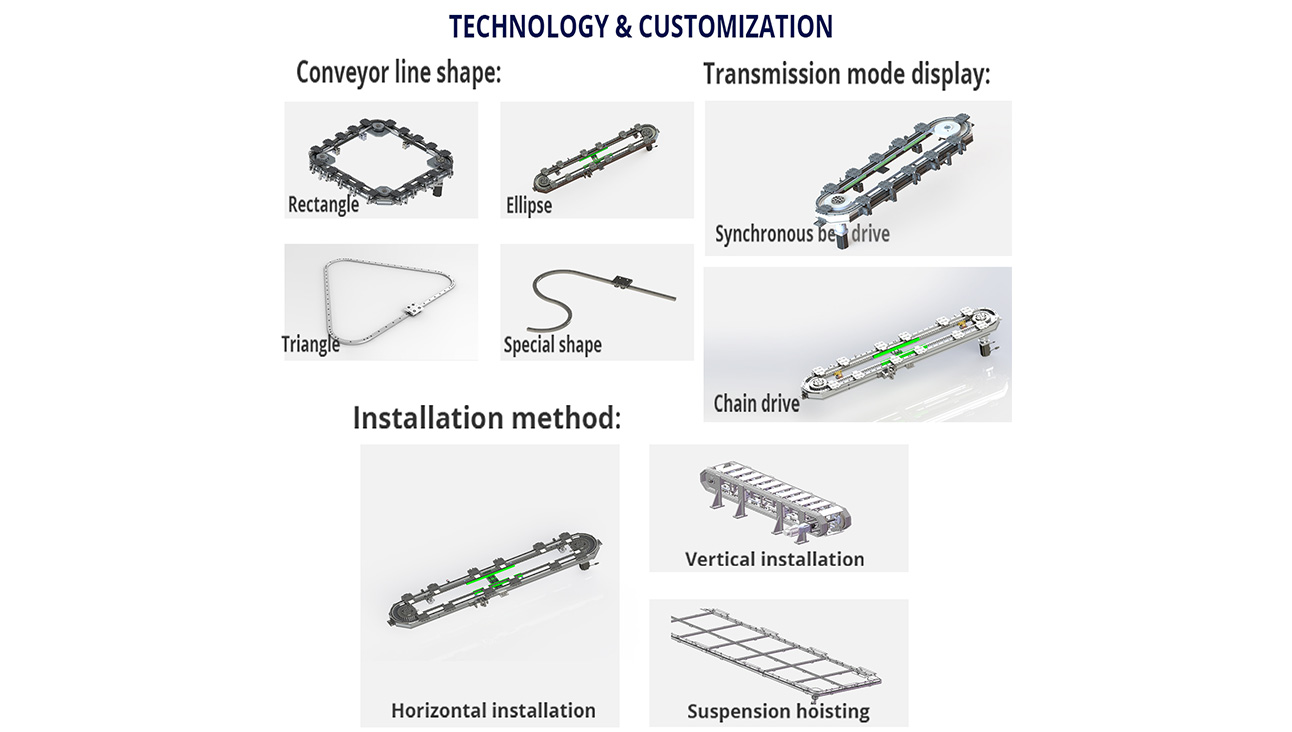

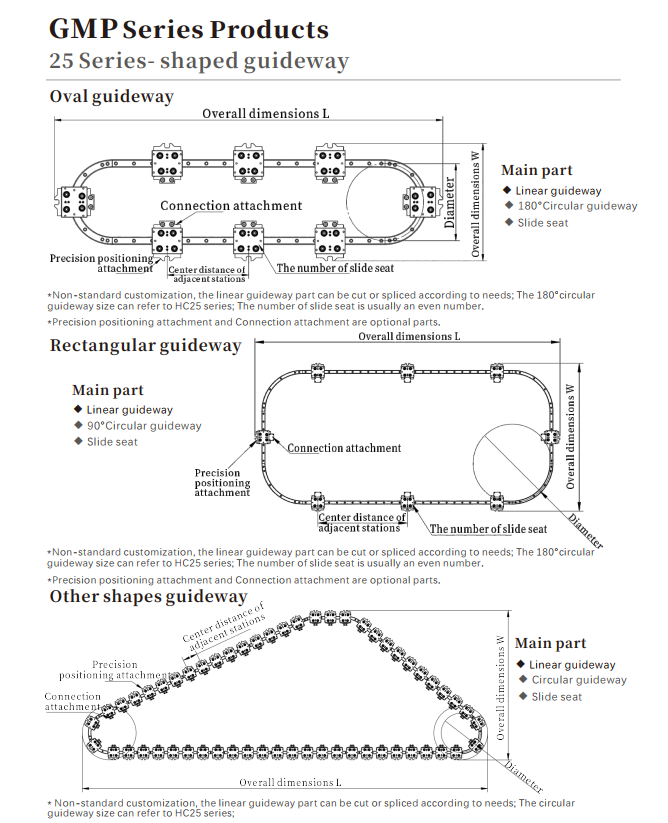

The highly flexible customization capability of the arc guide system is one of its core advantages. The arc, length and width of the track can be freely designed according to the actual production layout of the enterprise, and seamlessly integrated into the existing production line. Its simple installation structure enables the equipment to be deployed and debugged within 3 days and put into use quickly. The system maintenance cost is extremely low, the service life of key components is more than 5 years, and it supports online maintenance, and maintenance work can be completed without stopping production. With these advantages, the arc guide system has helped many companies improve their production efficiency by more than 30%, becoming a reliable choice for multiple industries to achieve modular production.
