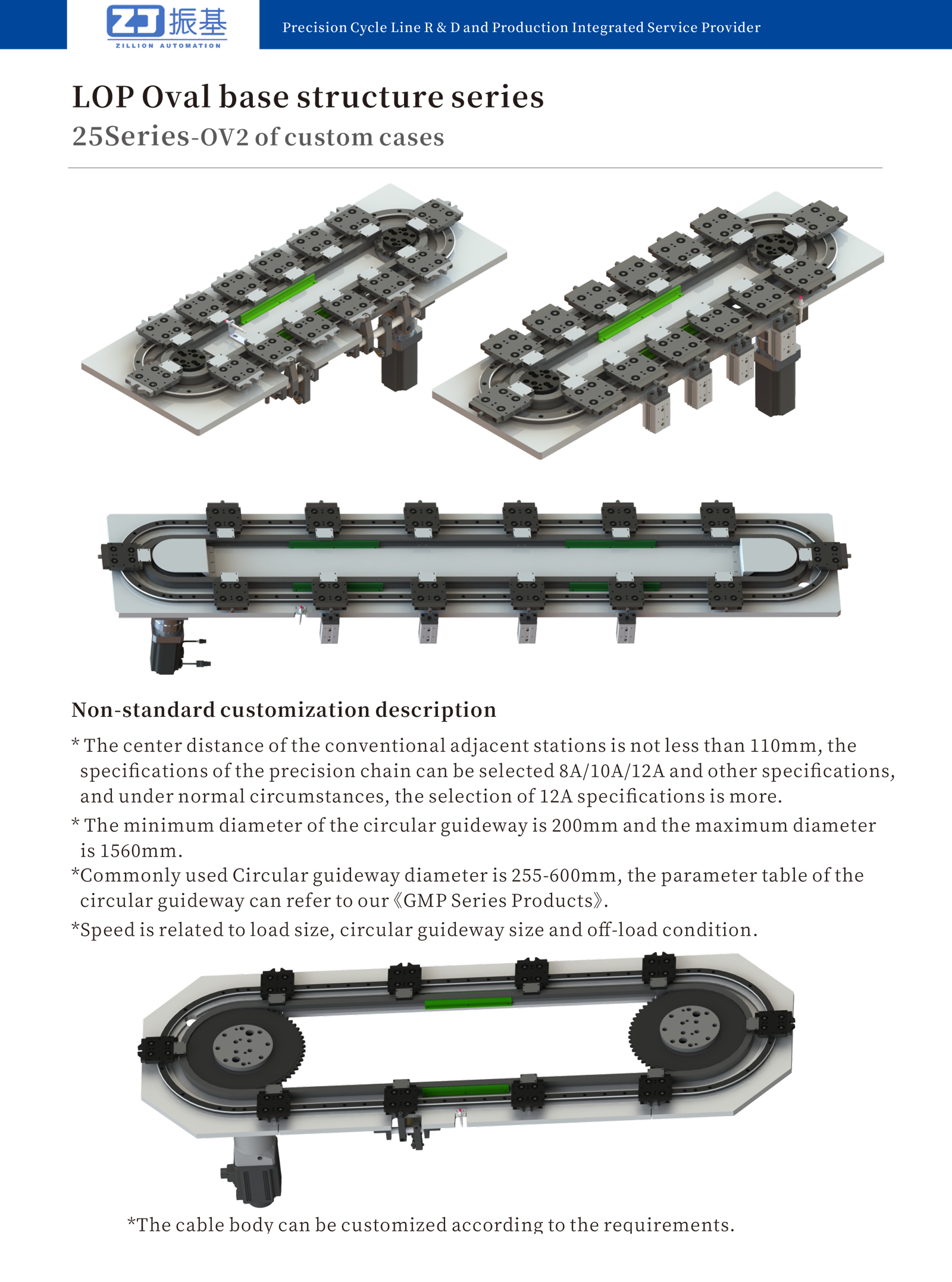

25 Series oval base plate structure chain driven circular guideway conveyor

oval circular guide rail conveyor chain conveyor

25 Series oval base plate structure chain driven circular guideway conveyor, It is used in the automatic production and manufacturing process of light load, high speed, high precision and long distance transportation.

Customize or Not: Customization

Shape of Conveyor: Ellipse

Single Workstation Load: 15 kg

Width of Guideway: 25mm

Installation Mode: ["Horizontal installation"]

Drive Module: Chain Drive

HOTLINE

15016006490

online consultation Get the quotation

25 Series oval base plate structure chain driven circular guideway conveyor, It is used in the automatic production and manufacturing process of light load, high speed, high precision and long distance transportation.

Structural Features

Shape- Oval

Base structure

Precision chain drive

Servo motor drive

Application characteristics

Suitable for long-distance transportation, the circumference can reach more than 100 meters.

Suitable for light load conveying, the maximum load of a single slide seat is 15 kg.

The slide seat works intermittently and can be switched at different speeds as needed.

Optional ranges of repeated positioning accuracy are: ±0.05-±0.5mm
