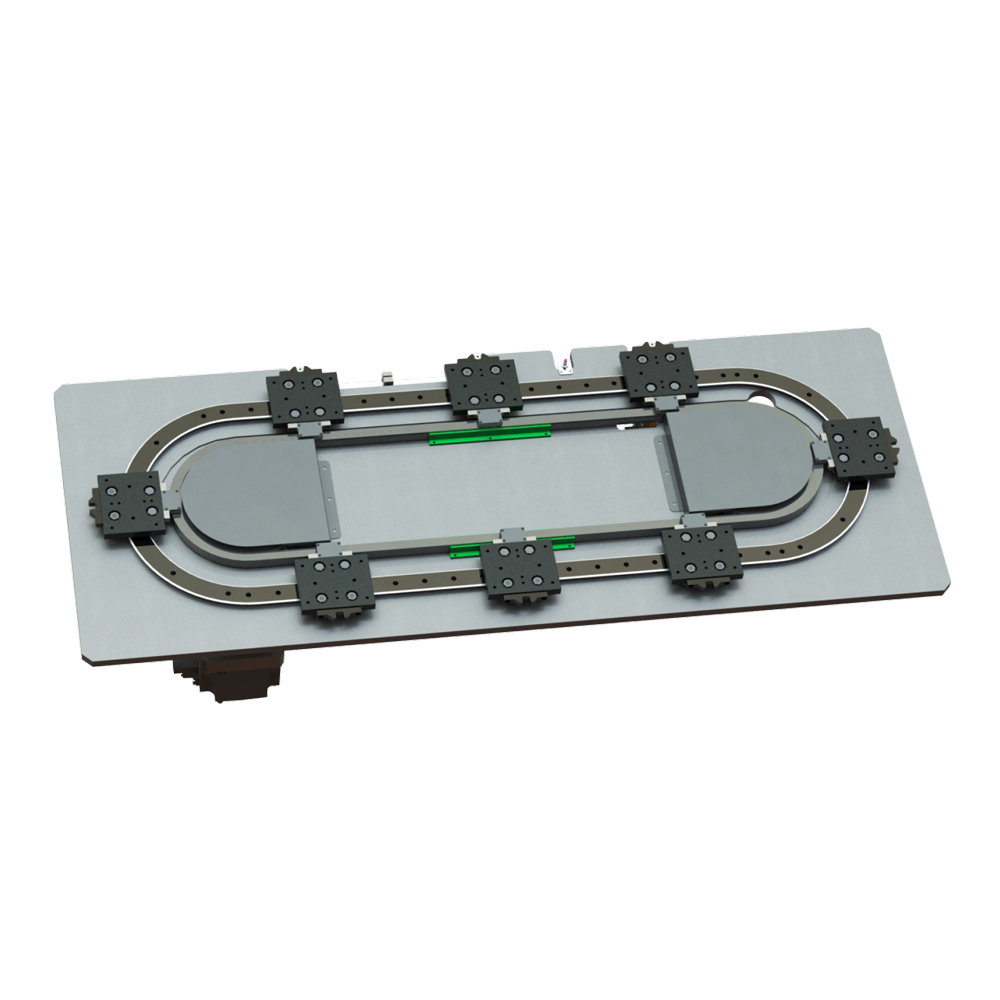

44 Series oval base structure chain circular guideway conveyor

Ellipse circular guide rail conveyor chain conveyor

44 Series Oval base structure chain driven circular guideway conveyor. It is used to automate production and manufacturing processes requiring medium load, high speed and high precision.

Customize or Not: Customization

Shape of Conveyor: Ellipse

Single Workstation Load: 30 kg

Width of Guideway: 44mm

Installation Mode: ["Horizontal installation"]

Drive Module: Chain Drive

HOTLINE

15016006490

online consultation Get the quotation

44 Series Oval base structure chain driven circular guideway conveyor. Ellipse circular guide rail conveyor is used to automate production and manufacturing processes requiring medium load, high speed and high precision.

Structural Features

Shape- Oval

Base structure

Precision chain drive

Medium load V-shaped guideway

Application characteristics

Suitable for long-distance transportation, the circumference can reach more than 100 meters.

Suitable for light load conveying, the maximum load of a single slide seat is 30 kg.

The slide seat works intermittently and can be switched at different speeds as needed.

Optional ranges of repeated positioning accuracy are: ±0.05-±0.5mm
